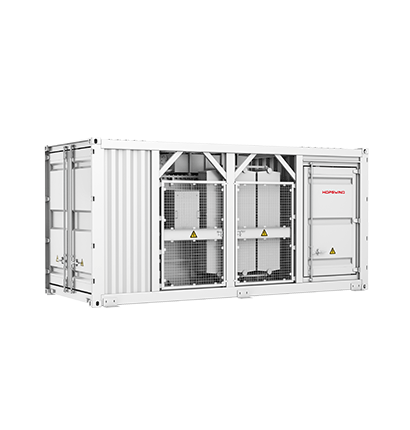

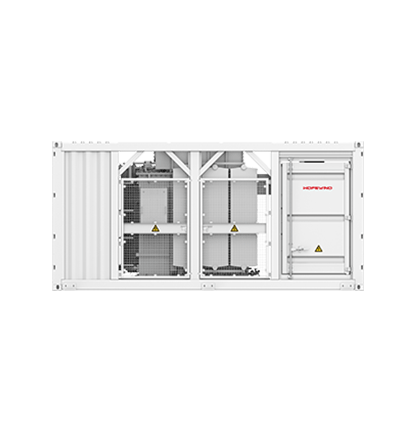

| Model | HPMVS-3000 | HPMVS-6000 | HPMVS-9000 |
| Available inverters | HSHV385K |
| No. of inverters | 9 | 18 | 24 |
| AC power @40℃ | 3465kVA | 6930kVA | 9240kVA |
| LV switches | MCCB (400A / 800Vac / 3P, 9pcs) | MCCB (400A / 800Vac / 3P, 18pcs) | MCCB (400A / 800Vac / 3P, 24pcs) |
| ACB (4000A / 800Vac / 3P, 1pc) | ACB (4000A / 800Vac / 3P, 2pcs) | ACB (4000A / 800Vac / 3P, 2pcs) |
| Rated input voltage | 800V |
| Rated output voltage | 10kV–35kV |
| Rated frequency | 50Hz / 60Hz |
| Transformer type | Oil-immersed, fully sealed, Dy11 | Oil-immersed, fully sealed, Dy11y11 |
| Transformer tapping | ±2×2.5% |
| Transformer oil type | Mineral oil (PCB free) |
| Transformer cooling type | ONAN |
| Transformer Min. Peak Efficiency | 99% / Tier1 / Tier2 (optional) |
| RMU type | SF6 gas insulated, DCV or CCV |
| Impedance (HV-LV1, LV2) | 6.50% | 8% | 9.50% |
| Auxiliary transformer | Dry type, 5kVA, 800V / 400V, Dyn11, level H (Customizable) |
| UPS | 1kVA, 30min (Customizable) |
| Transformer monitoring and protection | Oil Level, Oil Temperature, Oil Pressure and Buchholz relay |
| Rated short-circuit breaking current | 20kA / 3s (Optional: 25kA/1s) |
| MV relay protection | 50 / 51, 50N / 51N |
| LV Overvoltage protection | Type I+II |
| Protection degree | IP54 for whole box transformer |
| IP68 for transformer body |
| Anti-corrosion degree | C4 |
| Dimension | 6058×2896×2438mm, standard 20-foot HC container |
| Weight | <15T | <22T | <27T |
| Temperature range | -25℃–60℃ |
| Relative humidity | 0%–95% |
| Max. Operating altitude | 2,000 m |
| Communication protocol | Modbus-RTU / Modbus-TCP / IEC104 |
| Color | RAL7035 |
| Applicable Standards | IEC 62271-200/202, EN 50588-1, IEC 60076, IEC 61439-1 |
