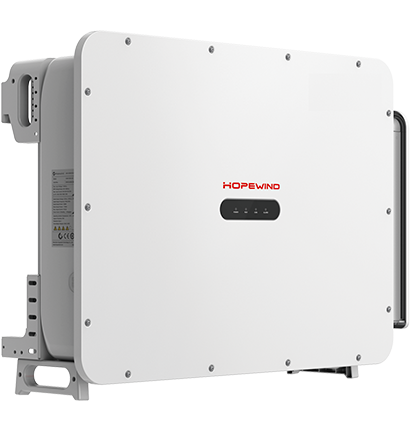

Hopewind PV Products-Hopewind

The most powerful C&I string inverter is perfectly compatible with 182/210 modules and supports full-load operation at 45°C. It not only has IP66 protection and C5 corrosion resistance but also supports AFCI DC arc protection, smart fan reverse dust removal, 1V1 temperature sensing detection and other functions, making the product operation safer and more reliable. It is suitable for large industrial and commercial roofs or village-level power stations, and can be installed manually without the assistance of lifting machinery.

Performance characteristics

Safe and Reliable

IP66 ingress protection, a strong environmental adaptability
Built-in AC/DC SPD for comprehensive lightning protection
Equipped with intelligent DC disconnection and AFCI functions for higher safety
Featuring temperature detection for both AC and DC terminals, enhance safety and reliability

Economical and Eco-friendly

Supports 4G and PLC communication, ensures low construction costs
Supports up to 400 m2 of aluminum wire connections, reduces cable costs
Higher capacity ratio, redues LCOE (Levelized Cost of Electricity)

Smart and User-friendly

High-precision intelligent string detection, smart IV curve scanning, and accurate fault identification
Equipped with HVRT/LVRT function, strong adaptability to weak grid with SCR technology
Supports nighttime SVG function, enhances grid compatibility and friendliness

Efficient Power Generation

6 MPPTs is adaptable to complex environments, maximizes power generation
MPPT current of 65 A, fully compatible with 180/210 modules
Support full-load operation at 45 ℃, minimizes power generation losses
Integrated PID recovery function, enhances system power generation

main parameters

Model	HSNV150K-G01
DC Input
Max. Input Voltage	1100 V
Starting Voltage	200 V
MPPT Voltage Range	200~1000 V
MPPT Range Full Load	550~850 V
Max. Input Current Per MPPT	65 A
Max. Short-circuit Current Per MPPT	97.5 A
Max. Number of DC Input	4 × 6
Number of MPPTs	6
AC Output
Rated Output Power	150 kW
Max. Output Apparent Power	165 kVA
Rated Output Voltage	400 V (3P + PE)
Rated Voltage Range	300~480 V
Rated Output Current	217 A
Max. Output Current	238 A
Rated Frequency / Frequency Adaptation Range	50 Hz / 60 Hz, 45~55 Hz / 55~65 Hz
Power Factor	0.8 (leading) to 0.8 (lagging)
Harmonic (THD)	< 3%
Efficiency
Max. Efficiency	98.80%
European Efficiency	98.10%
Protection
Surge Protection	DC type II / AC type II
Insulation Impedance Detection	Yes
Residual Leakage Current Detection	Yes
PV String Fault Detection	Yes
PV Reverse Polarity Protection	Yes
Anti-islanding Protection	Yes
Zero Export Function	Yes
Output Overcurrent Protection	Yes
Output Short-circuit Protection	Yes
DC Switch	Yes
IV Curve Scanning	Yes
PID	Yes
General Parameters
Dimensions (W × H × D)	1172 × 805 × 350 mm
Weight	≤ 110 kg
Ingress Protection	IP66
Operating Temperature	-40~+60 ℃ (> 45 ℃derating)
Cooling System	Smart air cooling
Storage Temperature	-40~+70 ℃
Humidity	0~100%, (non-condensation)
Topology	Transformerless
Operating Altitude	4000 m
Display	LED indicator + APP
Communication	RS485 / PLC / Wi-Fi / 4G
DC Connection Type	MC4 (plug-in terminals)
AC Connection Type	OT / DT terminals (up to 400 mm2)
